UPRIGHT, 16 FT H X 48” W REDI-RACK STYLE 22,000LBS PER SECTION

Products Details

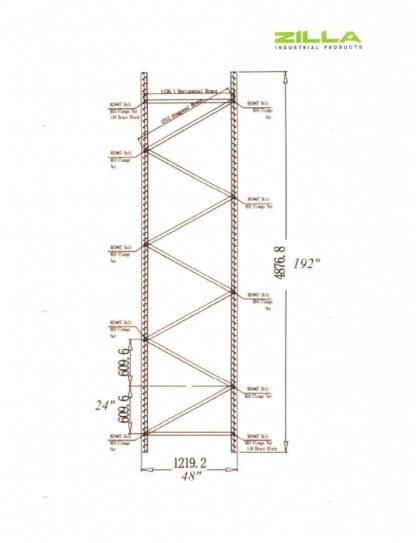

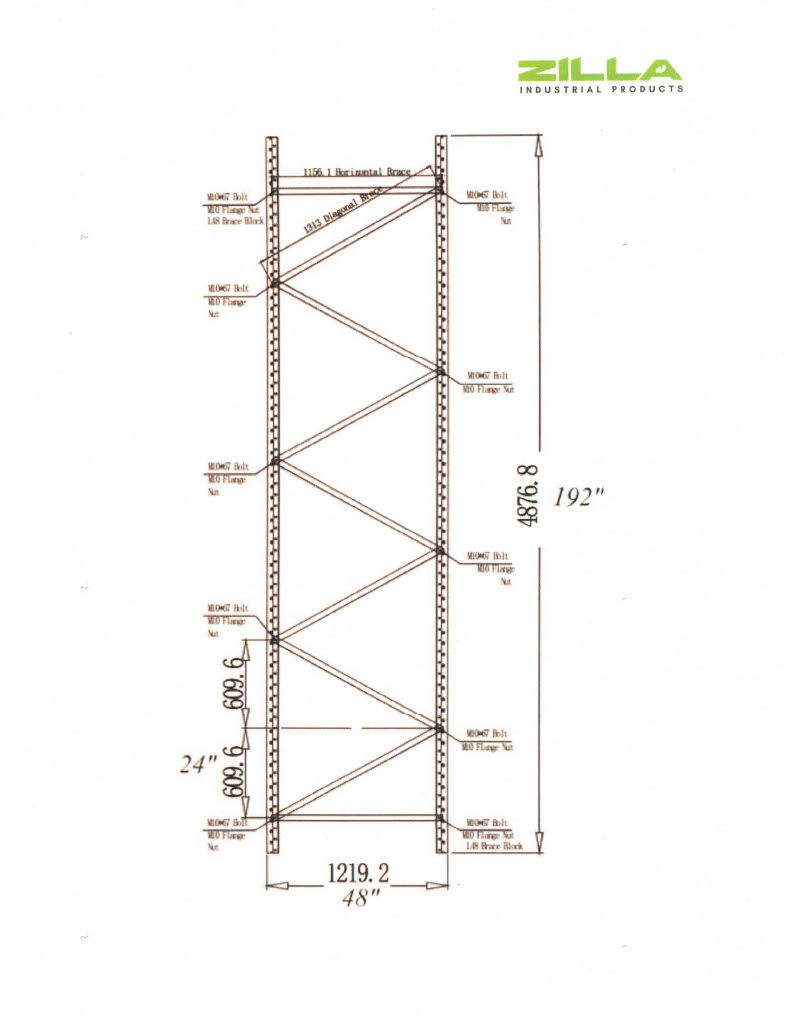

RR-UPRIGHT, 16 FT H X 48'' D REDI-RACK STYLE 22,000 LB/ SECTION 16 FT TALL X 48" WIDE (DEEP) CAPACITY: 22,000 LBS/ SECTION - BOLTED FRAME STYLE 14 GAUGE, 3.35" (85mm) x 2.64" (67mm), 3" (76.2mm) PITCH - REDI-RACK DIMENSIONS UNASSEMBLED. **OVER-SIZE PART - REQUIRES CUSTOM FREIGHT QUOTE - PRIOR TO PURCHASE.** PLEASE COMPLETE SALE - AND - ZILLA PERSONNEL WILL UPDATE THE CUSTOMIZED FREIGHT COST ASAP. PDF (Assembly Instr):ZRR-UR-16HX48W-SALES.PDF STEP (3D CAD): ZRR-UR-16HX48W.STEP
