UPRIGHT, 14 FT X 42” W REDI-RACK STYLE 22,000LBS PER SECTION

Products Details

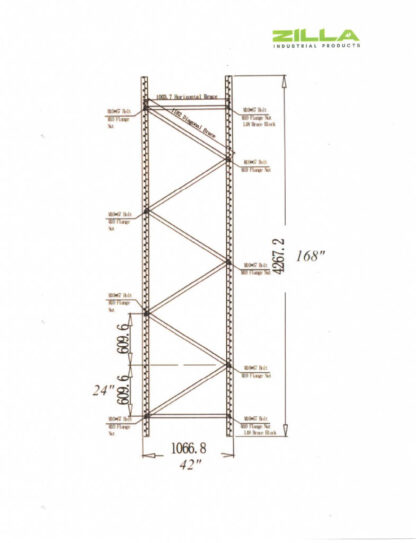

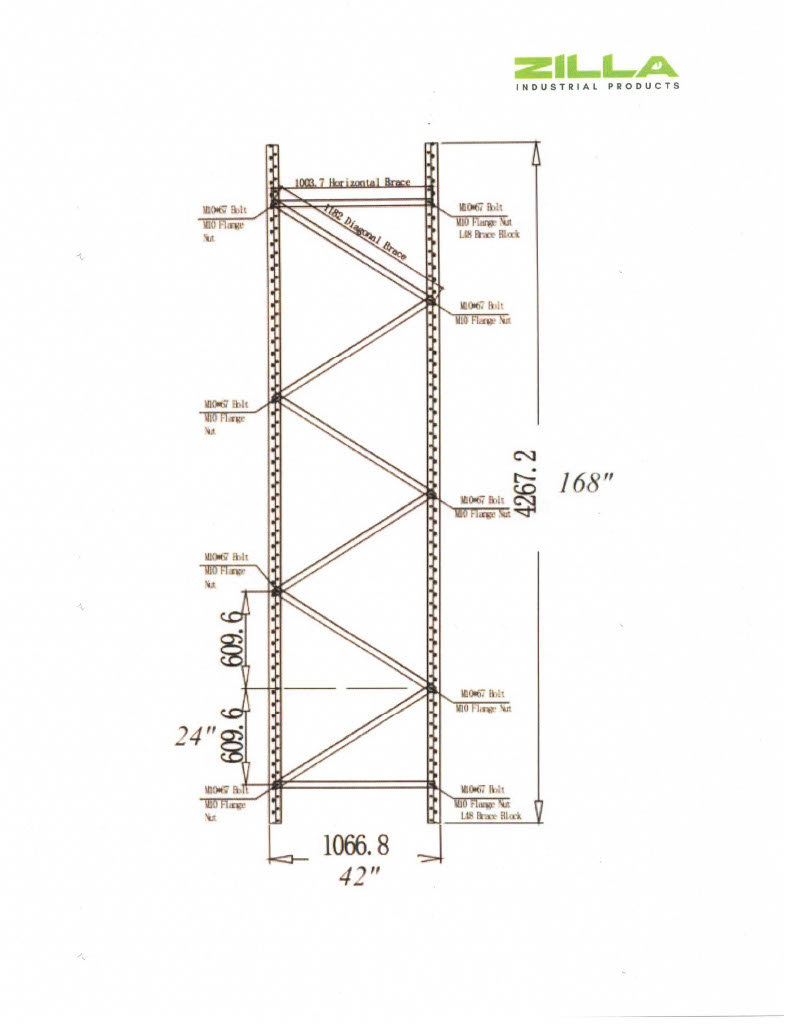

RR-UPRIGHT, 14 FT H X 42'' D REDI-RACK STYLE 22,000 LB/ SECTION

14 FT TALL X 42" WIDE (DEEP) CAPACITY: 22,000 LBS/ SECTION - BOLTED FRAME STYLE

14 GAUGE, 3.35" (85mm) x 2.64" (67mm), 3" (76.2mm) PITCH - REDI-RACK DIMENSIONS

UNASSEMBLED.

**OVER-SIZE PART - REQUIRES CUSTOM FREIGHT QUOTE - PRIOR TO PURCHASE.**

PLEASE COMPLETE SALE - AND - ZILLA PERSONNEL WILL UPDATE THE CUSTOMIZED FREIGHT COST ASAP.

PDF (Assembly Instr): ZRR-UR-14HX42W-SALES.PDF

STEP (3D CAD): ZRR-UR-14HX42W.STEP
